High Voltage Motors >> YRKK/YRKS High Voltage Slip Ring Motor

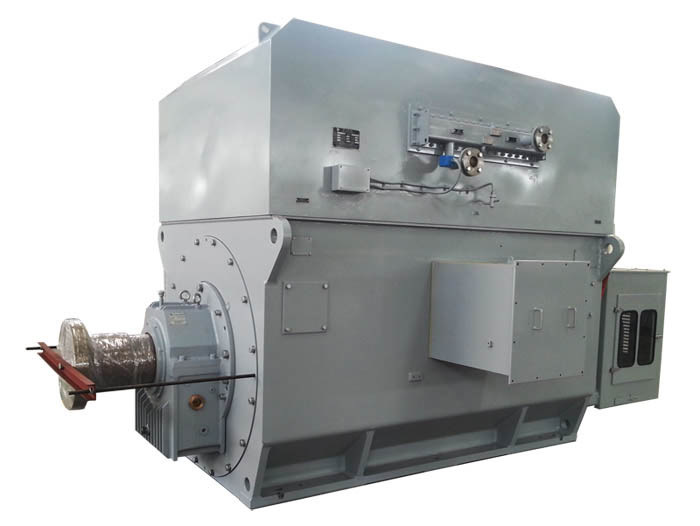

YRKK/YRKS High Voltage Slip Ring Motor

Technical characteristics

Electrical performance data

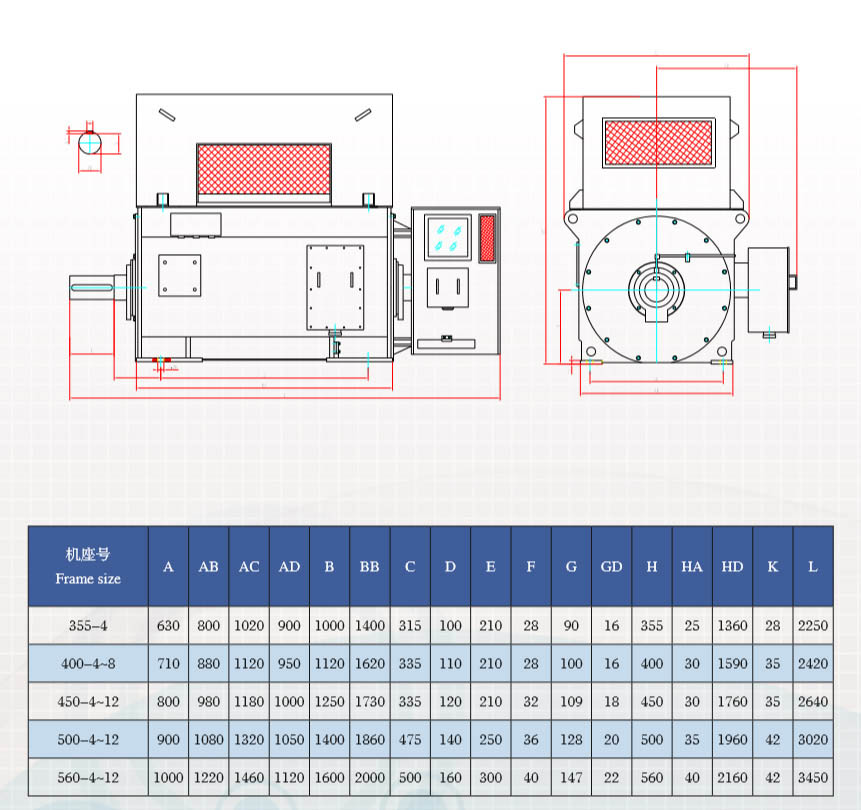

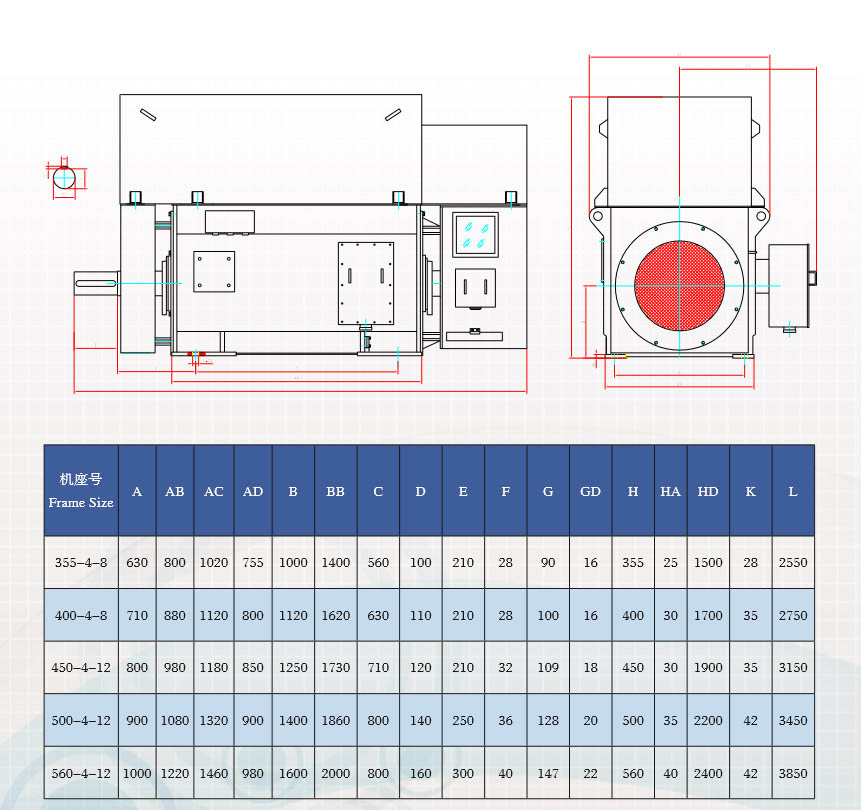

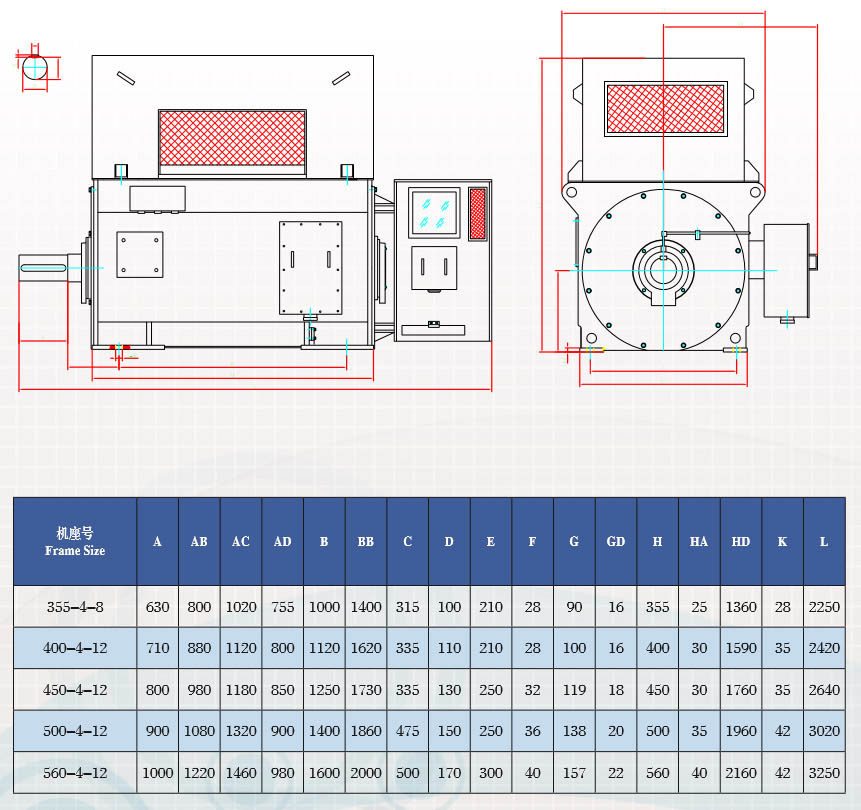

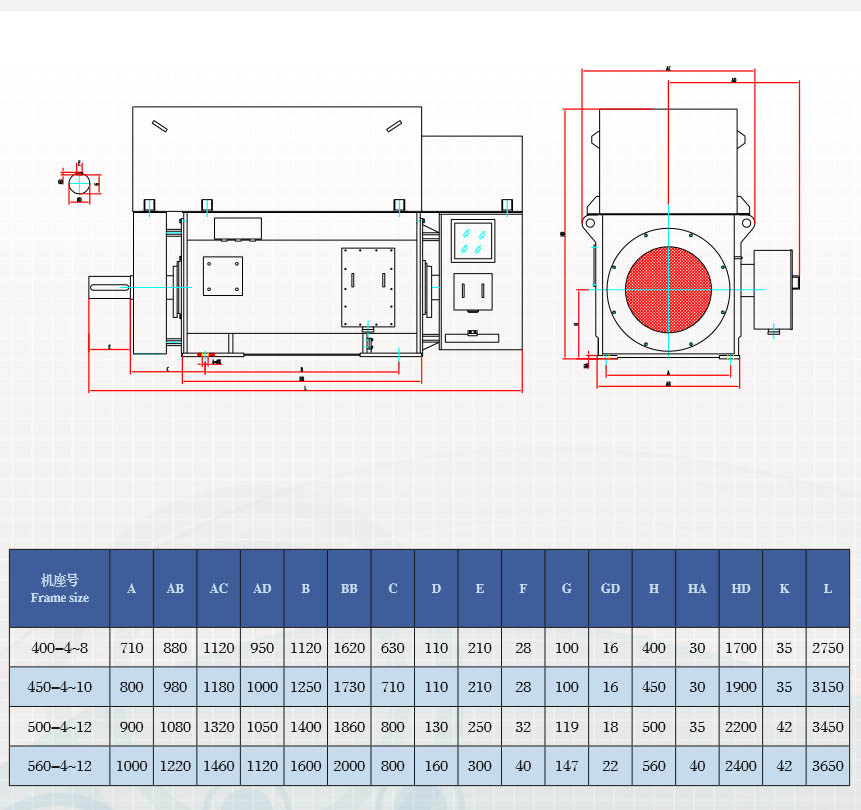

Mechanical dimension data

With Steel Welding frame
Power Range :200-10000KW
Voltage:400/690/3000/6000/10000V
Protection: IP23,IP55
Product Advantages
Big Starting Torque
Low Noise
Low Vibration
High Efficiency
Application
Rolling Mills
Hoists
Crusher

Frame Siz	Synchronous Speed(r/min)
	1500	1000	750	600	500
	Power(kW)
H355	355	280	250
	400	315	280
	450	355	315
	500	400
H400	560	450	355	250	250
	630	500	400	280	280
	710	560	450	315
	800	630	500	355
H450	900	710	560	400	315
	1000	800	630	450	355
	1120	900	710	500	400
	1250	1000	800	560	450
H500	1400	1120	900	630	500
	1600	1250	1000	710	560
	1800	1400	1120	800	630
	2000	1600	1250	900	710
H560	2240	1800	1400	1000	800
	2500	2000	1600	1120	900
	2800	2240	1800	1250	1000
		2500	2000	1400	1120
6KV IP23
Frame Siz	Synchronous Speed(r/min)
	1500	1000	750	600	500
	Power(kW)
H355	280	280
	315	315
	355	355
	400
H400	450	400	280
	500	450	315
	560	500	355
	630	560	400
H450	710	630	450	280	250
	800	710	500	315	280
	900	800	560	355	315
	1000	900	630	400	355
H500	1120	1000	710	450	400
	1250	1120	800	500	450
	1400	1250	900	560	500
	1600	1400	1000	630	560
H560	1800	1600	1120	710	630
	2000	1800	1250	800	710
	2240	2000	1400	900	800
	2500		1600	1000	900
6KV IP55
Frame Siz	Synchronous Speed(r/min)
	1500	1000	750	600	500
	Power(kW)
H355	280
	315
	355
	400
H400	450	315	280
	500	355	315
	560	400	355
	630	450	400
		500
H450	710	560	450	280	280
	800	630	500	315	315
	900	710	560	355	355
	1000	800	630	400
				450
H500	1120	900	710	500	400
	1250	1000	800	560	450
	1400	1120	900	630	500
	1600	1250	1000	710	560
H560	1800	1400	1120	800	630
	2000	1600	1250	900	710
	2240	1800	1400	1000	800
	2500	2000	1600	1120	900
10KV IP23
Frame Siz	Synchronous Speed(r/min)
	1500	1000	750	600	500
	Power(kW)
H400	280	280
	315	315
	355	355
	400	400
	450
	500
H450	560	450	280
	630	500	315
	710	560	355
			400
	800	630	450
			500
H500	900	710	560	400	280
	1000	800	630	450	315
	1120	900	710	500	355
	1250	1000	800	560	400
					450
H560	1400	1120	900	630	500
	1600	1250	1000	710	560
	1800	1400	1120	800	630
	2000	1600	1250	900	710
